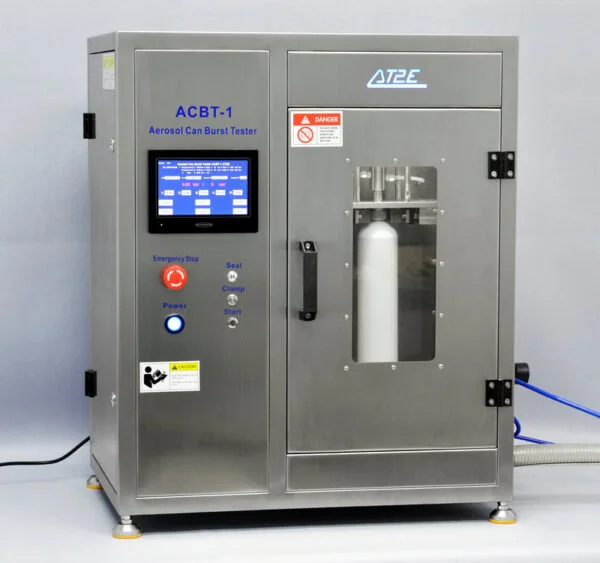

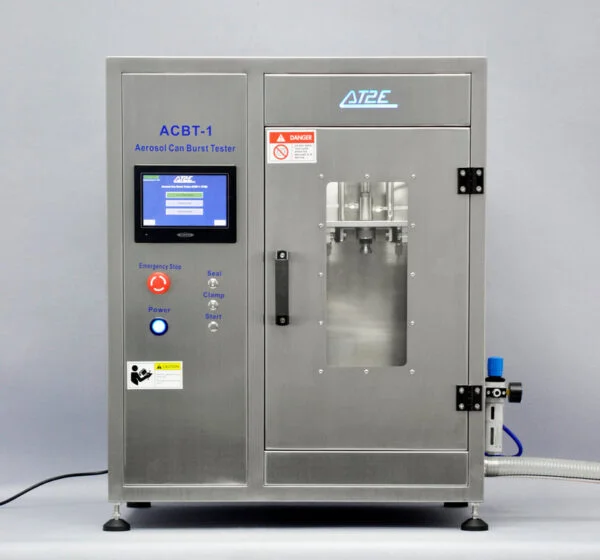

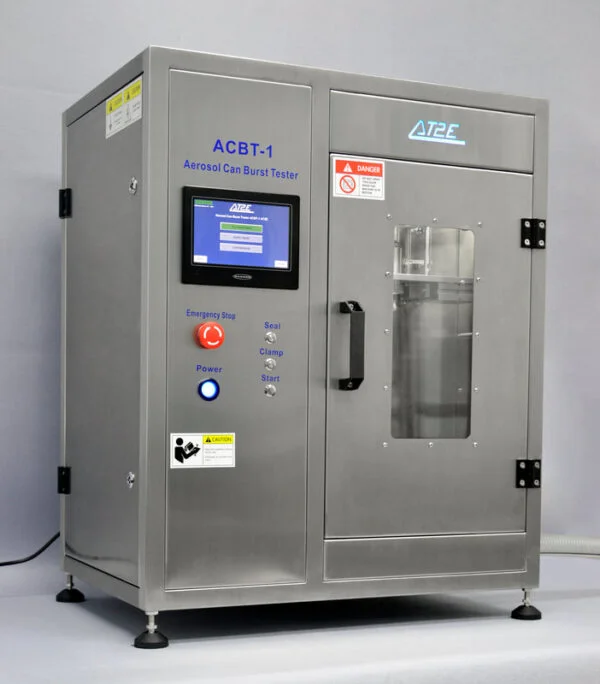

Aerosol Can Burst Tester – ACBT-1

ACBT-1 Aerosol Can Burst Tester for precise pressure testing of aerosol cans.

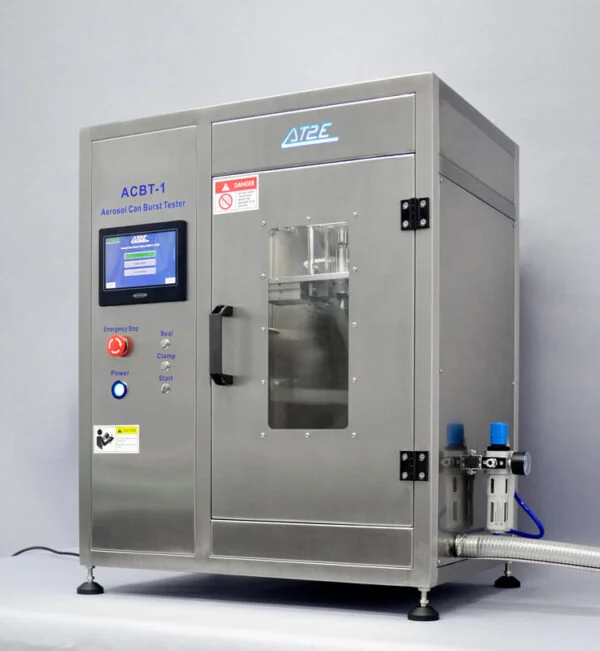

ACBT-1 Aerosol Can Burst Tester Right Side View

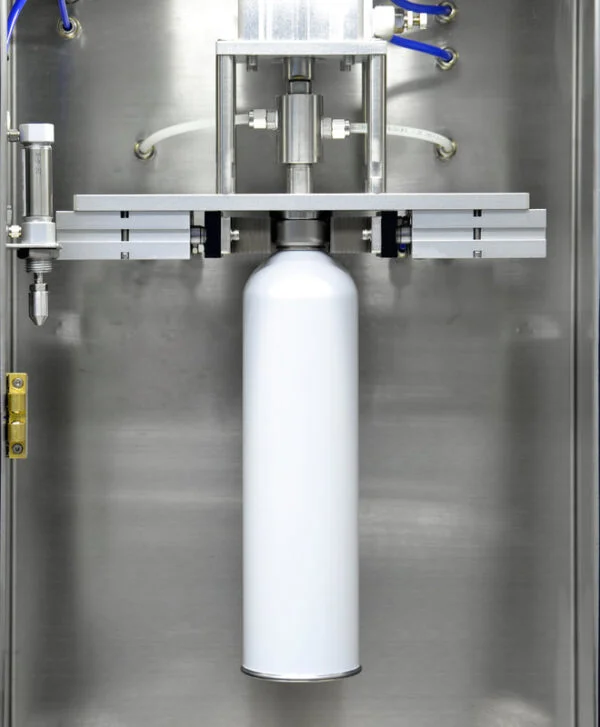

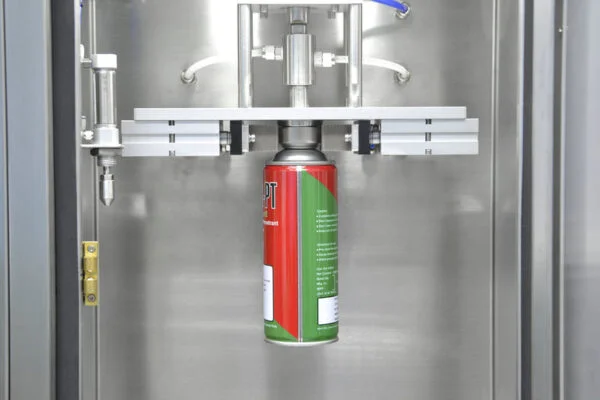

Aerosol Can Burst Tester Front Sample Sealing

A tool for assessing the internal pressure durability of aerosol cans, ensuring product safety and reliability through precise, automated testing. It is designed for both 3-piece and mono-block cans, offering advanced features for comprehensive quality assurance.

SKU ACBT-1-024 Categories Burst testers, Can-Seaming Tag Can

The ACBT-1 Aerosol Can Burst Tester is designed to assess the internal pressure durability of aerosol cans, including both 3-piece and mono-block constructions. This device is essential in ensuring the safety and reliability of aerosol cans by simulating and testing the conditions they may encounter during use.

Efficient Testing Process

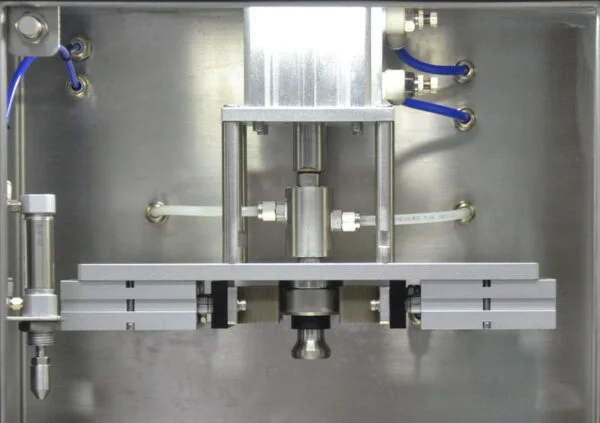

Install the aerosol can under the affusion head.
Seal the can and ensure the protective safety door is closed.
Start the test with a single button press.
The device automatically fills and pressurizes the can for accurate testing.
The can is subjected to increasing pressure until it fails, ensuring thorough testing.
Test data is automatically documented and displayed on the integrated screen.

Advanced Features

User Interface: Operates via PLC with a high-resolution touch screen interface.
Testing Modes: Offers three modes: Fill Ramp, Burst, and Custom.
Ease of Use: Simplifies setup with automatic clamping and filling processes.
Precision: Provides consistent and reliable testing outcomes with linear pressurization.
Data Management: Features substantial memory capacity for multiple operators and products, and customizable lot and sequence numbering for organized testing.
Real-Time Analysis: Displays real-time testing curves for detailed analysis.
Construction: Made from robust stainless steel for durability and safety.
Safety: Includes a state-of-the-art safety door to protect users during testing.
Connectivity: Equipped with RS232 output for efficient data management.

Technical Specifications

Test Range: 0 to 40 bar (0 to 580 psi) with high precision.
Compatibility: Suitable for a wide range of standard aerosol cans.
Requirements: Detailed air supply and power requirements ensure optimal performance.
Dimensions and Weight: Compact and stable design for easy placement and use.

Optional Accessories

Mini Printer: Available for enhanced reporting capabilities.
QualiBurstPlus Software: Elevates testing protocols with advanced features.

The ACBT-1 Aerosol Can Burst Tester is an essential tool for the aerosol industry, providing unmatched accuracy, ease of use, and safety in testing.

FAQ for ACBT-1 Aerosol Can Burst Tester

What is the purpose of the ACBT-1 Aerosol Can Burst Tester?

The ACBT-1 Aerosol Can Burst Tester is designed to assess the internal pressure durability of aerosol cans, ensuring product safety and reliability through precise and automated testing. It can evaluate both 3-piece and mono-block cans under simulated conditions they may encounter during use.

How does the ACBT-1 perform testing on aerosol cans?

The testing process is efficient and user-friendly. Users simply install the aerosol can under the affusion head, seal it, and press a single button to start the test. The device automatically fills and pressurizes the can until it fails, documenting and displaying the test data on the integrated screen.

What are the key features of the ACBT-1 Aerosol Can Burst Tester?

The ACBT-1 features a high-resolution touch screen interface, multiple testing modes (Fill Ramp, Burst, and Custom), automatic clamping and filling, real-time analysis of testing curves, and robust stainless steel construction. It also includes a safety door for user protection and substantial memory capacity for data management.

What is the test range and pressure capability of the ACBT-1?

The ACBT-1 has a test range of 0 to 40 bar (0 to 580 psi), providing high precision for assessing the durability of aerosol cans under various pressure conditions.

Are there any optional accessories available for the ACBT-1?

Yes, optional accessories include a mini printer for enhanced reporting capabilities and QualiBurstPlus software, which elevates testing protocols with advanced features for better data analysis and management.

Is the ACBT-1 easy to operate for multiple users?

Absolutely! The ACBT-1 is designed for ease of use, with a user-friendly interface that accommodates multiple operators and allows for customizable lot and sequence numbering, making it ideal for diverse testing environments.
