STS-1 | Swing Top Stopper Tester

Bottle Closure Testing with STS-1 Swing Top Stopper Tester

A precision instrument designed to accurately measure the opening and closing forces of swing top stoppers on bottles, featuring built-in dynamometers, a semi-automatic operation, and adjustable settings to accommodate various bottle sizes.

SKU STS-1-SWING-TOP-TESTER-001 Categories Force / Compression, Glass Bottles

Precise Swing Top Stopper Testing

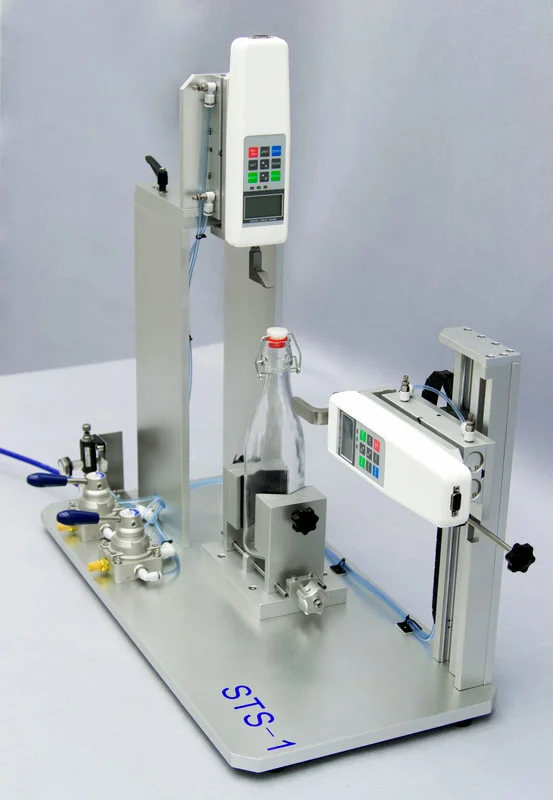

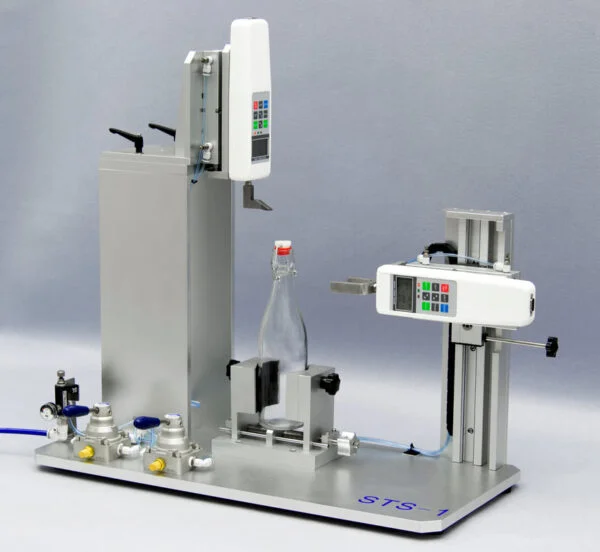

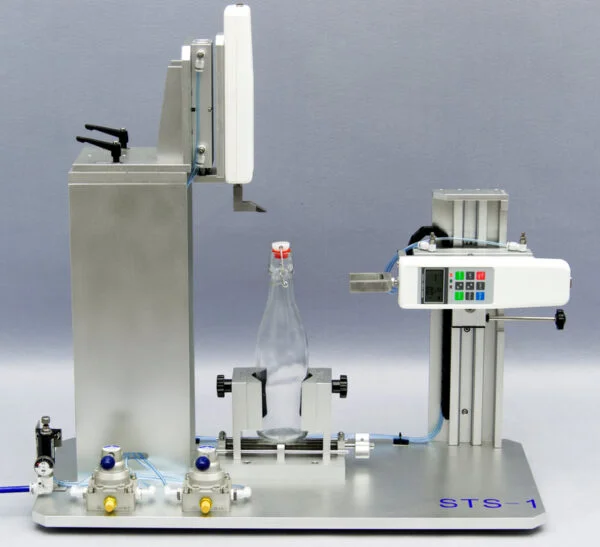

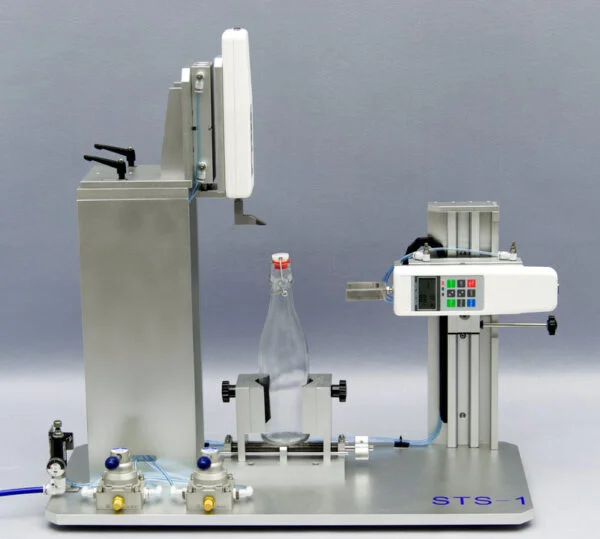

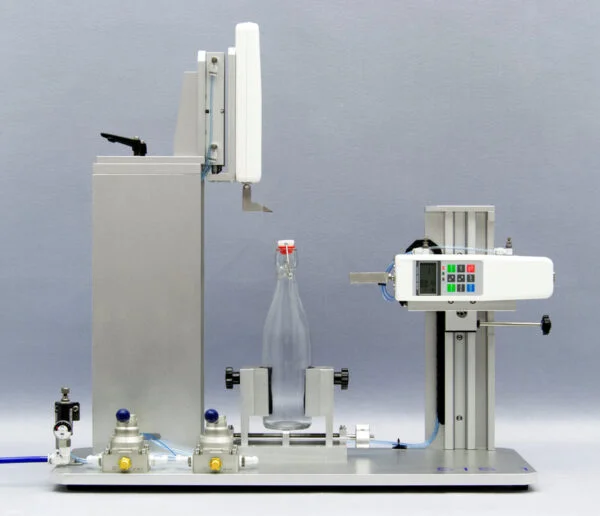

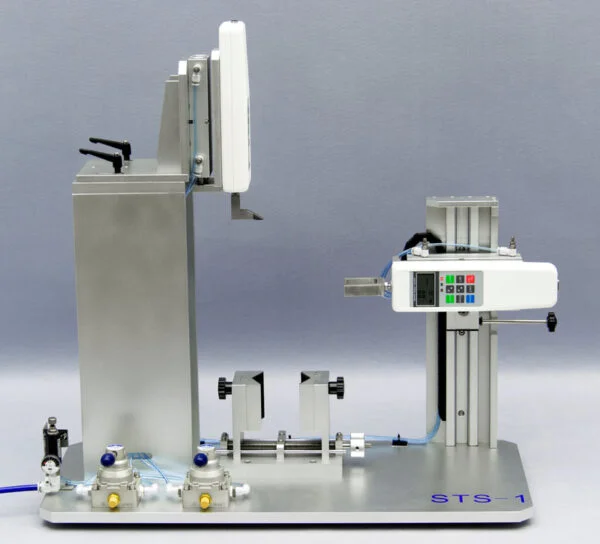

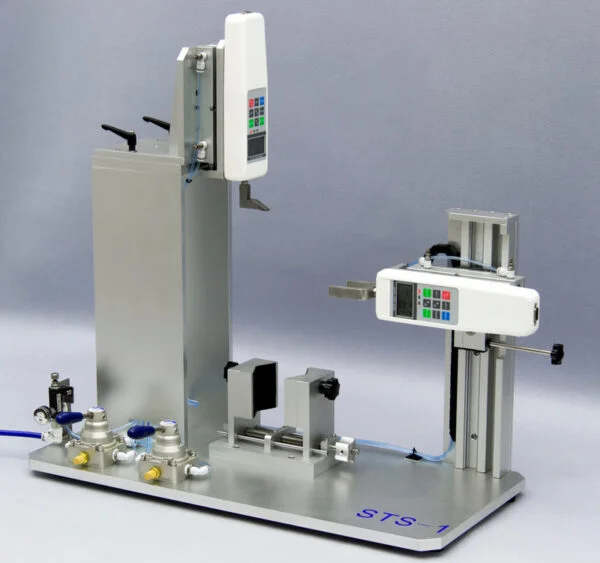

The STS-1 Swing Top Stopper Tester is designed to precisely measure the opening and closing forces of swing top stoppers on bottles. This innovative device features two dynamometers for accurate force measurement and a semi-automatic operation cycle for ease of use. Its adjustable testing position allows for compatibility with various bottle heights, ensuring versatility.

Key Features

High Accuracy: Equipped with built-in dynamometers for precise measurements.
User-Friendly: Semi-automatic operation simplifies the testing process.
Versatile: Adjustable to accommodate bottles of different heights.

How It Works

The STS-1 operates by clamping the bottle, adjusting the stopper position, and utilizing pneumatic valves to measure the opening and closing forces at stable speeds. The dynamometers provide accurate force readings, making the STS-1 an essential tool for quality control.

Technical Specifications

Force Ranges: 0-50 N, 0-100 N, or 0-200 N (Please specify when ordering)
Digital Displays: Includes options for recalibration and multiple measurement modes.
Compact and Durable: Designed for reliable performance in various testing environments.

Features

Easy to use
High repeatability in testing
Built-in dynamometer with software integration

Testing Procedure

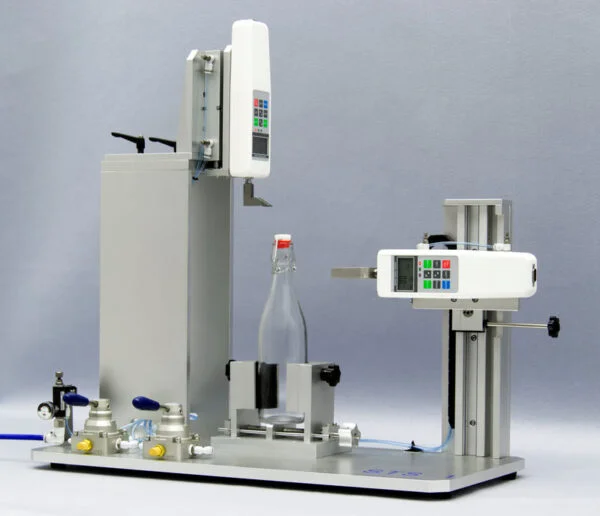

Install the bottle into the clamp and adjust the swing top stopper position, then secure the clamp.

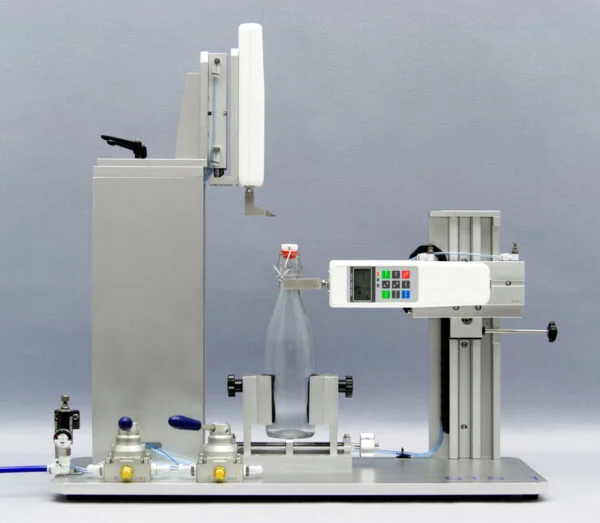

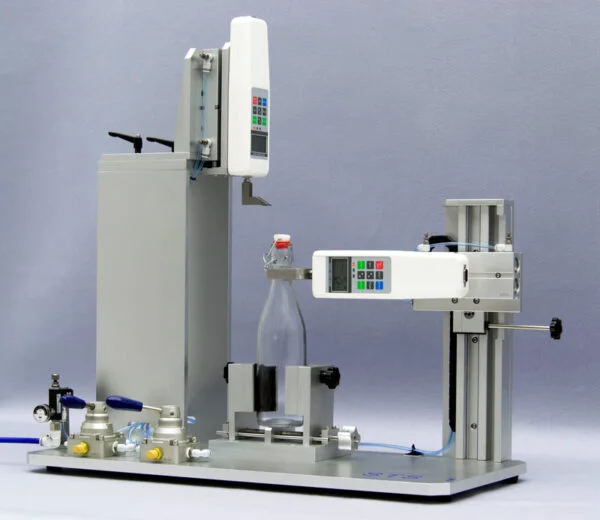

Move the pneumatic valve to the testing position for the opening force test. The system will test at a stable speed, and the dynamometer will measure the force. Once the test is complete, return the valve to the standby position.

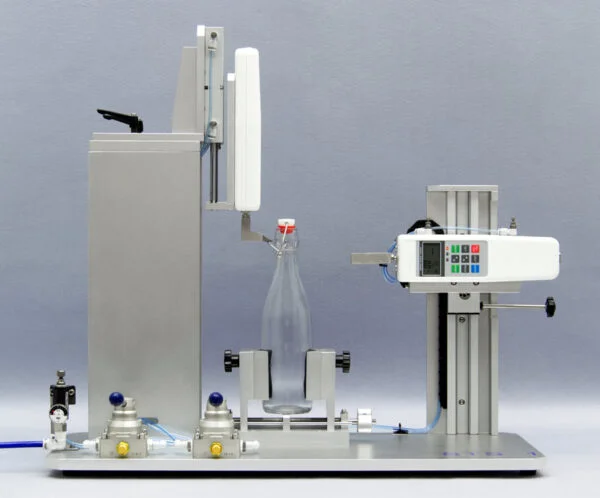

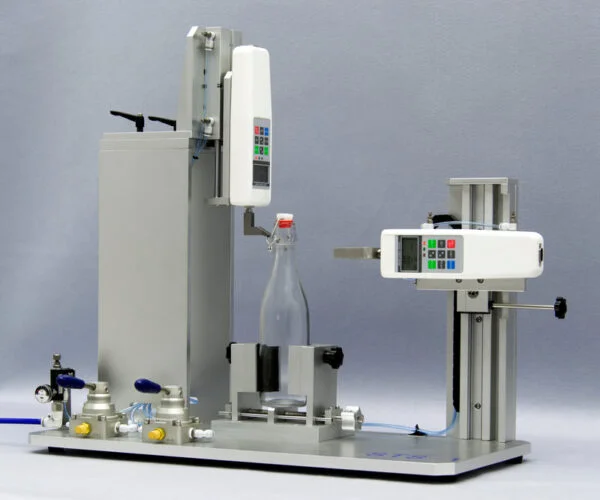

Repeat the process for the closing force test, using the corresponding pneumatic valve. Once the test is done, return the valve to the standby position.

Dynamometer Specifications

Range Options: 0-50 N, 0-100 N, 0-200 N
Measurement Capabilities: Measures tensile and compressive strain
Display: Digital, with reversible display options
Measurement Modes: Continuous, Peak, PC Link
Accuracy: 0.01 N (0-50 N), 0.05 N (0-100 N), 0.1 N (0-200 N)
Units: kgf, Lbf, N
Battery: Integrated, with charge status display
Data Transfer: Curve data transfer to software

Mechanical Specifications

Air Supply: 0-6 bar (0-87 psi)
Dimensions: 700 x 350 x 650 mm (27.56 x 13.78 x 25.59 in)
Weight: 21 kg (46.3 lbs.)

FAQ for STS-1 Swing Top Stopper Tester

What is the purpose of the STS-1 Swing Top Stopper Tester?

The STS-1 Swing Top Stopper Tester is designed to accurately measure the opening and closing forces of swing top stoppers on bottles. It is an essential tool for quality control in the beverage and packaging industries, ensuring that stoppers function correctly and securely.

How does the STS-1 Swing Top Stopper Tester operate?

The STS-1 operates by clamping the bottle and adjusting the swing top stopper position. It uses pneumatic valves to conduct tests at stable speeds, while built-in dynamometers measure the opening and closing forces, providing precise readings for both operations.

What are the available force ranges for the STS-1?

The STS-1 Swing Top Stopper Tester offers multiple force range options: 0-50 N, 0-100 N, and 0-200 N. Users should specify their desired range when ordering to ensure the tester meets their specific requirements.

Is the STS-1 user-friendly for new operators?

Yes, the STS-1 is designed with user-friendliness in mind. Its semi-automatic operation simplifies the testing process, allowing new operators to efficiently conduct tests with minimal training.

What are the dimensions and weight of the STS-1 Swing Top Stopper Tester?

The STS-1 has dimensions of 700 x 350 x 650 mm (27.56 x 13.78 x 25.59 in) and weighs 21 kg (46.3 lbs.), making it compact enough for various testing environments while still being robust and durable.

Can the STS-1 Swing Top Stopper Tester be integrated with software for data analysis?

Yes, the STS-1 features built-in dynamometers that allow for software integration. This enables users to transfer curve data for further analysis, enhancing the functionality and usability of the tester in quality control processes.
