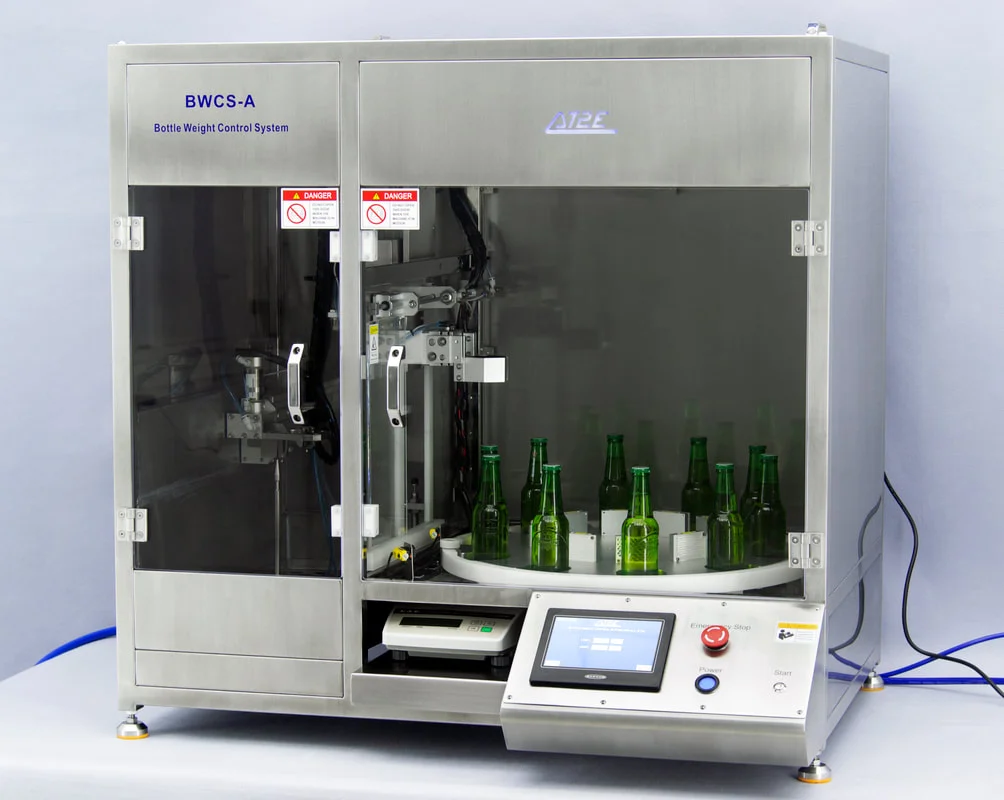

The BWCS-A Bottle Weight Control System is an advanced, automated solution designed for precise and efficient weighing of bottles in various industrial applications. Integrated with a PLC and touch screen interface, this system offers high accuracy, enhanced productivity, and user-friendly operation for quality control processes.

Key Features

• PLC Integrated with Touch Screen: Enables easy and intuitive operation.
• Multi-Position Design: Provides higher efficiency by handling multiple samples simultaneously.
• High Precision Weighing: Accurate measurements with fine resolution.
• Automated Sample Handling: Streamlines the weighing process through robotic automation.
• Data Management: Stores and displays comprehensive data for effective monitoring and record-keeping.
• Safety Measures: Equipped with safety doors and secure configurations.
• Multi-Language Support: Available in English and French for versatile use.

Technical Specifications

Weighing System

• Weighing Range: 0 – 4,000 g (0 – 8.82 lbs)
• Weighing Resolution: 0.01 g (0.00035 oz)
• Units: Grams (g)

Power Supply

• Voltage: AC 220 V (Optional AC 110 V)
• Rated Power: 650 W

Air and Water Supply

• Air Supply Pressure: 5 – 8 bar (72.5 – 116 psi)
• Water Supply Pressure: ≥ 1.5 bar (≥ 21.75 psi); utilizes tap water

Capacity and Storage

• Sample Capacity: Up to 10 samples (Other capacities available upon request)
• Operator Memory: Stores information for up to 10 operators
• Product Memory: Stores information for up to 30 products
• Batch Number Storage: Pre-stores up to 30 batch numbers for each of the two production lines

Display and Interface

• Screen Display Information:
  • Real-time weighing value
  • Product name
  • Operator name
  • Batch number
  • Sample number
• Communication Port: RS232 for seamless data transfer
• Language Options: English and French
• Configuration Security: Protected by administrative passwords to ensure secure settings

Automated Features

• Safety Door: Ensures operator safety during operation.

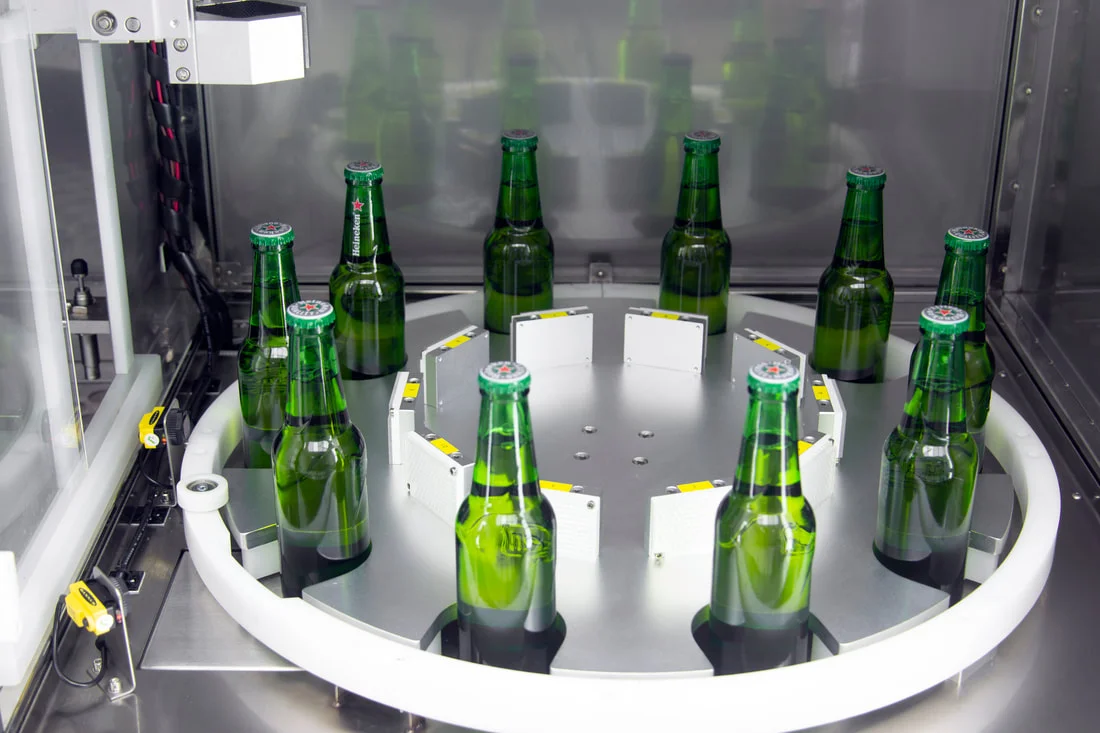

• Star-Wheel Conveying System: Efficiently transports samples through different stages.
• Robotic Arm Functionality:
  • Automatically grabs samples for processing.
  • Decaps and dries samples before weighing.
  • Returns emptied bottles to the star-wheel post-processing.
• Automated Data Handling:
  • Automatically acquires and records weighing data.
  • Supports data transmission to external Data Acquisition Software or systems.
• Auto Zero Function: Automatically resets to zero before starting each cycle to maintain accuracy.

Mechanical Specifications

• Frame Material: Durable stainless steel construction for longevity and ease of maintenance.
• Dimensions:
  • Length: 1,085 mm (42.7 in)
  • Width: 860 mm (33.9 in)
  • Height: 1,035 mm (40.7 in)
• Weight: 170 kg (374.8 lbs)
